Where Precision Meets Pharmaceutical Perfection

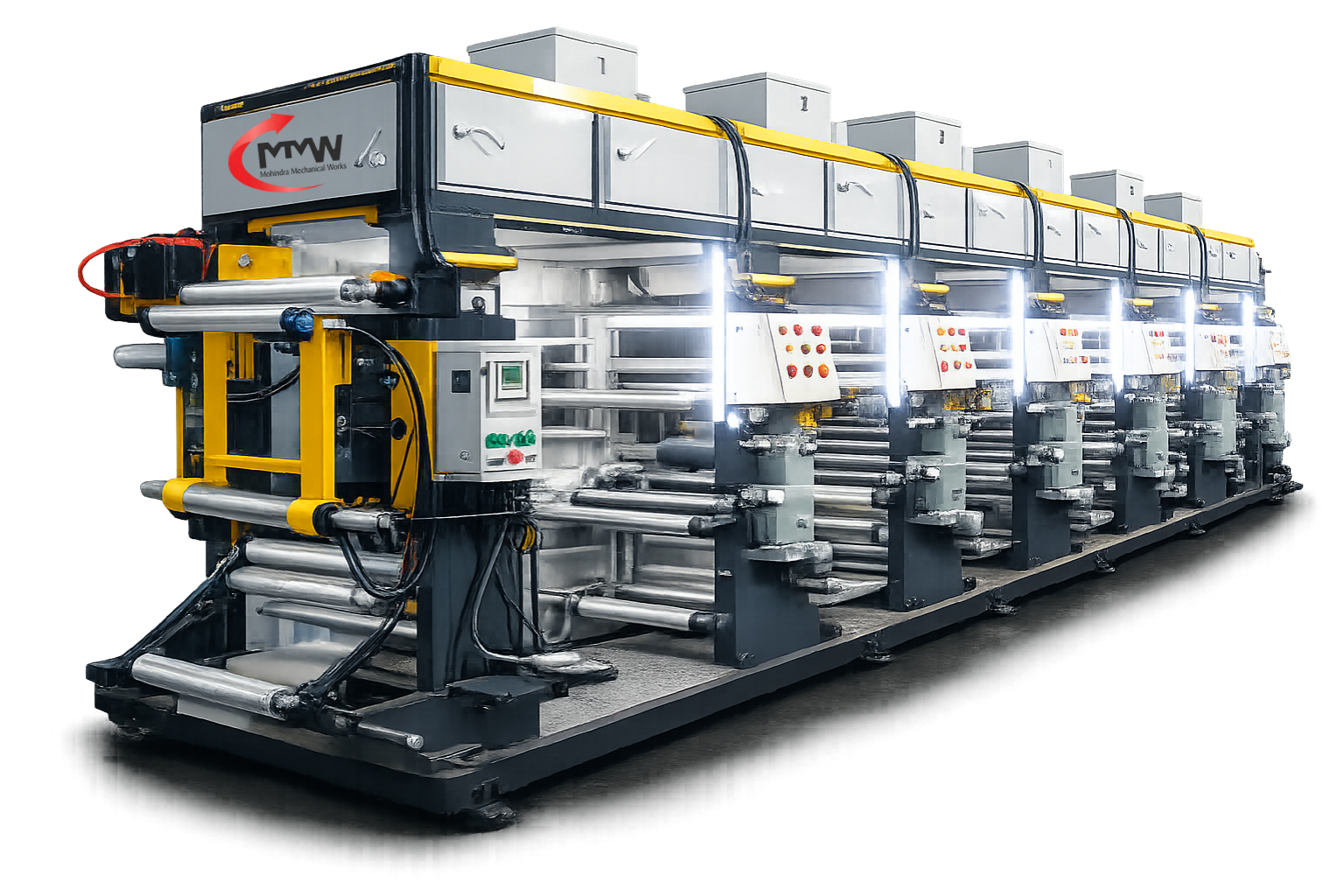

In the pharmaceutical industry, every printed detail matters — from batch numbers to expiry dates. Our Pharmaceutical Blister Foil Printing Machine is engineered to deliver ultra-precise, high-speed, and contamination-free printing on aluminum blister foils, ensuring your packaging meets the highest industry standards.
Designed for modern pharma manufacturing units, this machine combines advanced printing technology, robust construction, and intelligent controls to give you flawless output with maximum efficiency.
Built for Accuracy. Designed for Reliability.
Whether you are printing tablets, capsules, or medical products, this machine ensures:
- Consistent print quality at high speed
- Zero smudging or fading
- Perfect ink adhesion on foil
- Crystal-clear text visibility
Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Printing Speed |
30 – 150 m/min |
|
Printing Width |
300 – 800 mm |
|
Material |
Aluminum Foil (Pharma Grade) |
|
Printing Type |
Rotogravure / Flexo |
|
No. of Colors |
1 – 6 Colors |
|
Printing Accuracy |
±0.1 mm |
|
Cylinder Type |
Engraved Gravure Cylinder |
|
Ink Type |
Solvent Based / Pharma Ink |
|
Unwind Roll Dia |
Up to 600 mm |
|
Rewind Roll Dia |
Up to 600 mm |
|
Web Guide System |
EPC System |
|
Tension Control |
Automatic |
|
Drying Type |
Hot Air Dryer |
|
Heating Source |
Electrical / Gas |
|
Drive System |
AC Variable Drive |
|
Control System |
PLC + HMI |
|
Power Supply |
380V / 415V, 3 Phase |
Key Features
Pharma-Grade Precision Printing
Ensures accurate printing of batch no., MFG/EXP dates, MRP, and barcodes without any error.
High-Speed Production Capability
Optimized for continuous operations with excellent output and minimal downtime.
Advanced Drying System
Equipped with efficient hot air drying to prevent ink spreading or smudging.
User-Friendly Operation
Smart control panel with easy settings for speed, pressure, and alignment.
Heavy-Duty Industrial Design
Built with strong structure for vibration-free performance and long machine life.
Low Maintenance & Cost Efficient
Consumes less power and requires minimal servicing.
Get Best Price & Details
Frequently Asked Questions
The machine can achieve speeds of up to 120–150 meters per minute, ensuring high productivity for large-scale operations.
The machine supports Rotogravure and Flexographic printing technologies, depending on your production requirements.
Yes, it is fully suitable for pharmaceutical use. The machine supports pharma-grade ink and ensures clean, accurate printing of batch numbers, expiry dates, and other critical details.
This machine is specially designed to print on Alu-Alu laminated foils, commonly used in pharmaceutical blister packaging. It ensures excellent print quality even on multi-layer foil structures.
